Въглероден филтър
Чиста и ефективна екстракция на въздуха благодарение на интегрираните въглеродни филтри. (* въглеродният филтър се продава отделно).
-
Осветление: халогенно
Нашите абсорбатори са оборудвани с халогенно осветление. Във всички модели включването на осветлението е независимо от действието на абсорбатора. Резултатът е удобство за потребителя.
i
Materialele grafice din cadrul descrierii produselor, precum imaginile şi clipurile video, prezintă modul de funcţionare a anumitor funcţii şi ar putea să nu reprezinte cu precizie modul de funcţionare a unui anumit model.

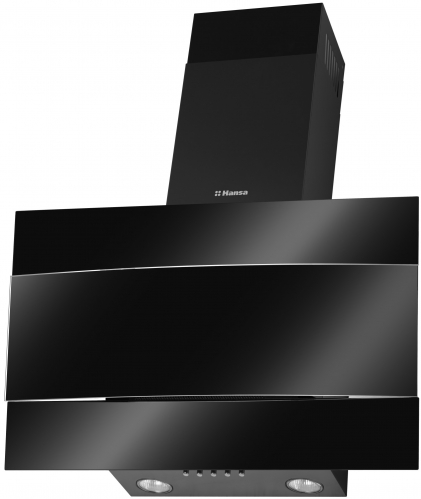

OKC624SH
OKC624SH
-
Въглероден филтър
-
Осветление: халогенно
-
Caracteristici
- Accessories -
- Air flaps Yes
- FrameOn Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Dotări
- Number of carbon filters 2
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Push buttons
- Type of grease filters Aluminium frame
- Carbon filter type FWK 145
-
Date tehnice
- Air flow at 1 speed - extractor by EN 61591 125 m3/h
- Air flow at 2 speed - extractor by EN 61591 157 m3/h
- Air flow at 3 speed - extractor by EN 61591 280 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 280 m3/h
- Air Flow at Minimum Speed in Normal Use 125 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 154.3 m3/h
- Air Pressure at Best Efficiency Point P BEP 221 Pa
- Consum energetic anual 60.2 kWh
- Consum energetic anual estimat 60.2 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 257 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in EU
- Dimensions of grease filter 222.5 x 250 x 9 mm
- Display color No
- Distance from light cover to wall 20 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 95.5 W
- Eficienţa dinamicii fluidelor 9.9
- Eficienţa dinamicii fluidelor E
- Grease Filtering Efficiency - GFE hood 61.9 %
- Eficienţă de filtrare a grăsimilor E
- Internal/external motor Internal
- Iluminare 42.8 lux/W
- Clasa de eficienţă a iluminării A
- Iluminare A
- Maximum Possible Air Flow 280 m3/h
- Motor unit rated power 115 W
- Motor type/model K-28 030 00 HE (obud. MT)
- Net depth 350 mm
- Net height max 1330 mm
- Net height min 960 mm
- Greutate netă 10 kg
- Net width 600 mm
- Nivel de zgomot 47 dB
- Nivel de zgomot 52 dB
- Nivel de zgomot 63 dB
- Nominal Power of the Lighting System - W L 6 W
- Number of motor units 1
- Number units of main lighting 2
- Diametru canal de evacuare a aerului 150 mm
- Type of plug or cable Euro plug
- Power cabel length 145 cm
- Power rating 121 W
- Tensiune de alimentare 230V
- Power unit of main lighting 3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 47 dB
- Nivel de zgomot 63 dB
- Time Increase Factor - f 1.6
- Type of main lighting LED
