Filtru de carbon
O extragere curată şi eficientă a aerului datorită filtrelor de cărbune integrate.
(* filtrul de carbon se achiziționează separat) -
Sistem de iluminare cu halogen
Hotele noastre sunt dotate cu lămpi cu halogen. La orice model, lampa poate fi aprinsă chiar dacă ventilatorul nu este în funcţiune. Aceasta poate fi utilizată ca o sursă suplimentară şi confortabilă de iluminare.
i
Materialele grafice din cadrul descrierii produselor, precum imaginile şi clipurile video, prezintă modul de funcţionare a anumitor funcţii şi ar putea să nu reprezinte cu precizie modul de funcţionare a unui anumit model.

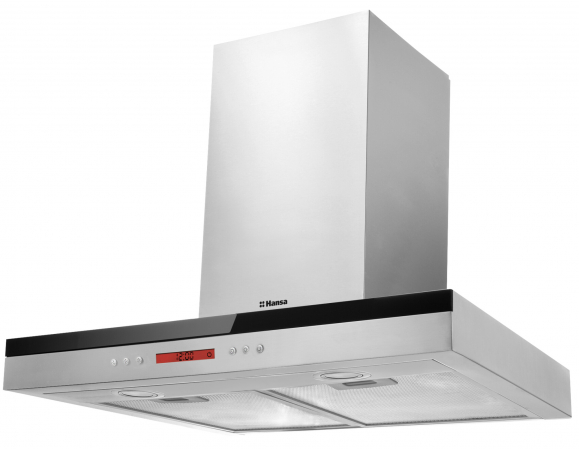

OKP662TH
OKP662TH
-
Filtru de carbon
-
Afişaj electronic
-
Sistem de iluminare cu halogen
-
Caracteristici
- Accessories Pipe
- Air flaps Yes
- Delay Yes
- Maximum time of delay 15 '
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Dotări
- Carbon filter(s) included Yes
- Number of carbon filters 1
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Soft touch
- Type of display LCD
- Type of grease filters Aluminium frame
- Carbon filter type FWP 03
-
Date tehnice
- Air flow at 1 speed - extractor by EN 61591 430 m3/h
- Air flow at 2 speed - extractor by EN 61591 540 m3/h
- Air flow at 3 speed - extractor by EN 61591 642 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 642 m3/h
- Air Flow at Minimum Speed in Normal Use 430 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 396 m3/h
- Air Pressure at Best Efficiency Point P BEP 340.5 Pa
- Consum energetic anual 78 kWh
- Consum energetic anual estimat 78 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 87 lux
- Container qty 40'HQ 441
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 340 x 260,2 mm
- Display color Red
- Distance from light cover to wall 385 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 173.1 W
- Eficienţa dinamicii fluidelor 21.6
- Eficienţa dinamicii fluidelor C
- Grease Filtering Efficiency - GFE hood 82.5 %
- Eficienţă de filtrare a grăsimilor C
- Internal/external motor Internal
- Main lighting colour temperature [K] 6500
- Iluminare 29 lux/W
- Clasa de eficienţă a iluminării A
- Iluminare A
- Maximum Possible Air Flow 642 m3/h
- Motor unit rated power 230 W
- Motor type/model E series
- Net depth 500 mm
- Net height max 950 mm
- Net height min 570 mm
- Greutate netă 13.1 kg
- Net width 600 mm
- Nivel de zgomot 57 dB
- Nivel de zgomot 63 dB
- Nivel de zgomot 68 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 1
- Number units of main lighting 2
- Diametru canal de evacuare a aerului 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.53 W
- Power cabel length 120 cm
- Power rating 234 W
- Tensiune de alimentare 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 57 dB
- Nivel de zgomot 68 dB
- Time Increase Factor - f 1.2
- Type of main lighting LED - other
