Filtru de carbon: 2
O extragere curată şi eficientă a aerului datorită filtrelor de cărbune integrate.
(* filtrul de carbon se achiziționează separat) -
Sistem de iluminare cu halogen
Hotele noastre sunt dotate cu lămpi cu halogen. La orice model, lampa poate fi aprinsă chiar dacă ventilatorul nu este în funcţiune. Aceasta poate fi utilizată ca o sursă suplimentară şi confortabilă de iluminare.
i
Materialele grafice din cadrul descrierii produselor, precum imaginile şi clipurile video, prezintă modul de funcţionare a anumitor funcţii şi ar putea să nu reprezinte cu precizie modul de funcţionare a unui anumit model.

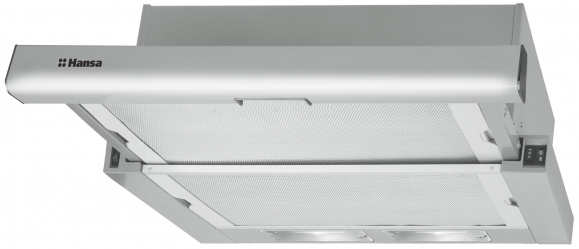

OTS615IH
OTS615IH
-
Filtru de carbon: 2
-
Sistem de iluminare cu halogen
-
Caracteristici
- Accessories Back masking
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Dotări
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Aluminium frame
- Carbon filter type FWK 140
-
Date tehnice
- Air flow at 1 speed - extractor by EN 61591 180 m3/h
- Air flow at 2 speed - extractor by EN 61591 228 m3/h
- Air flow at 3 speed - extractor by EN 61591 240 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 240 m3/h
- Air Flow at Minimum Speed in Normal Use 180 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 159.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 192 Pa
- Consum energetic anual 55.7 kWh
- Consum energetic anual estimat 55.7 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 138 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Turkey
- Dimensions of grease filter 476x130mm / 477x205mm
- Display color No
- Distance from light cover to wall 6 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 87.3 W
- Eficienţa dinamicii fluidelor 9.8
- Eficienţa dinamicii fluidelor E
- Grease Filtering Efficiency - GFE hood 56.1 %
- Eficienţă de filtrare a grăsimilor E
- Internal/external motor Internal
- Main lighting colour temperature [K] 2700
- Iluminare 21 lux/W
- Clasa de eficienţă a iluminării B
- Iluminare B
- Maximum Possible Air Flow 240 m3/h
- Motor unit rated power 125 W
- Motor type/model SP25 (NEW)
- Net depth 310 mm
- Net height max 174 mm
- Net height min 174 mm
- Greutate netă 5.7 kg
- Net width 600 mm
- Nivel de zgomot 50 dB
- Nivel de zgomot 53 dB
- Nivel de zgomot 58 dB
- Nominal Power of the Lighting System - W L 6.4 W
- Number of motor units 1
- Number units of main lighting 2
- Diametru canal de evacuare a aerului 120 mm
- Type of plug or cable Euro plug
- Power cabel length 130 cm
- Power rating 131 W
- Tensiune de alimentare 220-240V
- Power unit of main lighting 3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 58 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 50 dB
- Nivel de zgomot 58 dB
- Time Increase Factor - f 1.6
- Type of main lighting LED bulb E14
