Carbon filters : 2
Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately) -
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Hansa hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Hansa hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

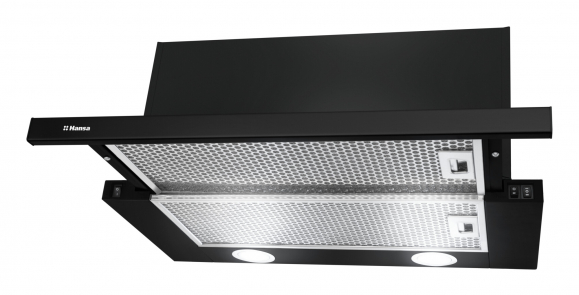

OTP6241BH
-
FEATURES
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Decorative aluminium frame
- Carbon filter type FWP 18
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 365 m3/h
- Air flow at 2 speed - extractor by EN 61591 420 m3/h
- Air flow at 3 speed - extractor by EN 61591 475 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 475 m3/h
- Air Flow at Minimum Speed in Normal Use 365 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 253.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 263 Pa
- Annual energy consumption 65.1 kWh
- Annual energy consumption 65.1 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 374.8 lux
- Container qty 40'HQ 924
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 453.5 x 202.5 x 9 mm
- Display color No
- Distance from light cover to wall 4.5 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 118.2 W
- Fluid Dynamic Efficiency - FDE hood 15.7
- Fluid Dynamic Efficiency Class D
- Grease Filtering Efficiency - GFE hood 78 %
- Grease Filtering Efficiency Class C
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Lighting Efficiency - LE hood 58.6 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 475 m3/h
- Motor unit rated power 150 W
- Motor type/model C series
- Net depth 300 mm
- Net height max 258 mm
- Net height min 258 mm
- Net weight 7.9 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 59 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 61 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 63 dB
- Nominal Power of the Lighting System - W L 6.4 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power cabel length 115 cm
- Power rating 158 W
- Power Supply Voltage 230V
- Power unit of main lighting 4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 59 dB
- Noise level 63 dB
- Time Increase Factor - f 1.4
- Type of main lighting LED GU10
