2 въглеродни филтри
Чиста и ефективна екстракция на въздуха благодарение на интегрираните въглеродни филтри. (* въглеродният филтър се продава отделно).
-
Осветление: халогенно
Нашите абсорбатори са оборудвани с халогенно осветление. Във всички модели включването на осветлението е независимо от действието на абсорбатора. Резултатът е удобство за потребителя.
i
Materialele grafice din cadrul descrierii produselor, precum imaginile şi clipurile video, prezintă modul de funcţionare a anumitor funcţii şi ar putea să nu reprezinte cu precizie modul de funcţionare a unui anumit model.

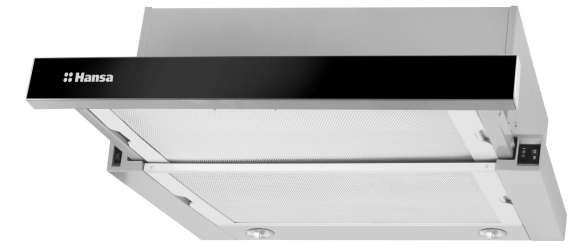

OTS6226IH
OTS6226IH
-
2 въглеродни филтри
-
Осветление: халогенно
-
Caracteristici
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Connector for changed outlet shape Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Dotări
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Aluminium frame
- Carbon filter type FWK 160
-
Date tehnice
- Air flow at 1 speed - extractor by EN 61591 301 m3/h
- Air flow at 2 speed - extractor by EN 61591 384 m3/h
- Air flow at 3 speed - extractor by EN 61591 425 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 425 m3/h
- Air Flow at Minimum Speed in Normal Use 301 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 274 m3/h
- Air Pressure at Best Efficiency Point P BEP 226 Pa
- Consum energetic anual 123.8 kWh
- Consum energetic anual estimat 123.8 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 150 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Turkey
- Dimensions of grease filter 477x205, 130x475 mm
- Display color No
- Distance from light cover to wall 18 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 196 W
- Eficienţa dinamicii fluidelor 8.8
- Eficienţa dinamicii fluidelor E
- Grease Filtering Efficiency - GFE hood 65 %
- Eficienţă de filtrare a grăsimilor D
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Iluminare 50 lux/W
- Clasa de eficienţă a iluminării A
- Iluminare A
- Maximum Possible Air Flow 425 m3/h
- Motor unit rated power 125 W
- Motor type/model 2 x SP33
- Net depth 305 mm
- Net height max 174 mm
- Net height min 174 mm
- Greutate netă 8 kg
- Net width 600 mm
- Nivel de zgomot 57 dB
- Nivel de zgomot 64 dB
- Nivel de zgomot 68 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 2
- Number units of main lighting 2
- Diametru canal de evacuare a aerului 120 mm
- Type of plug or cable Euro plug
- Power cabel length 150 cm
- Power rating 253 W
- Tensiune de alimentare 220-240V
- Power unit of main lighting 1.5 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 57 dB
- Nivel de zgomot 68 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED GU10
